STEPTYTM

For stopping the flow of blood using pressure immobilization after immobilizing the intravenous line, following the drawing of blood using thick injection needles (14-18 gauges).

Medical device notification number 40B2X00015131130, Medical supplies (4) Orthopedic instruments
General medical device First-aid bandage, JMDN code 34864000

How to use this product

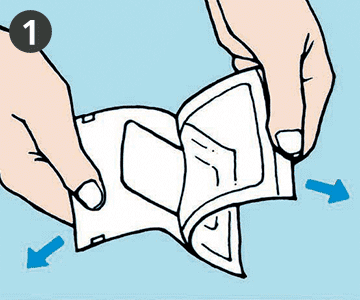

Pull in the direction of the arrow to open the sterilized package, and take out the "STEPTY™". Turn the side with the transparent film upward, and pull from the center of the removal area of the film for easy opening.

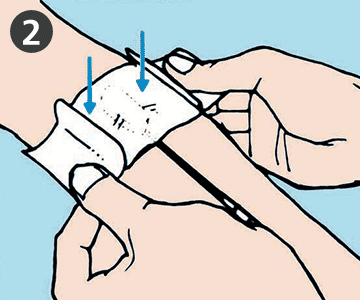

Match the longer side of the pad with the direction of the vessel just before pulling out the needle or the catheter. Place the centre of the pad onto the insertion site of the needle or the catheter, and tape it on slightly.

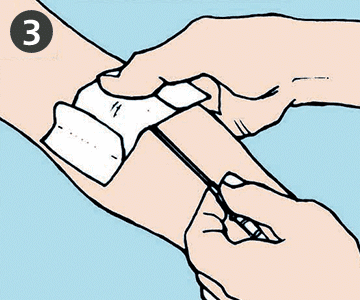

Press the pad lightly with your thumb and take out the needle or catheter.

As you pull out the needle or catheter, put firm pressure on the pad with your thumb.

Press the pad firmly and keep it still while you stretch the adhesive tape out to the length of your thumb and securely attach it to the skin.

Be careful not to move the pad as you replace the pressurizing thumb with your other thumb, and continue to apply firm pressure.

Continue to apply firm pressure to secure the pad while you stretch the other adhesive tape to the length of your thumb, and securely attach it to the skin.

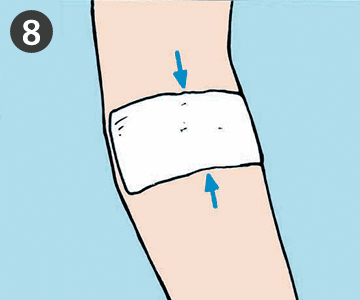

The diagrams show images of "STEPTY™" after being applied. The pad is securely covered with the tapes.

Storage
  • Store in a shaded area at room temperature, away from water, high temperatures, high humidity and direct sunlight.

Specifications​
Key features
  • Features of the pad area
    6 mm thick. A sufficient hemostatic effect is achieved by the pressure applied through the secure fastening of the adhesive tapes.
    Oval-shaped, 27 mm long. The tape covers the gap between the access site of the skin and the vessels, to stop the bleeding of the vessels with angiopressure. The oval-shape helps soothe skin irritation.

  • The first layer, which has direct contact with the skin, is made from an extremely thin non-woven cellulose fabric which instantly absorbs the blood. The tape area consists of a non-woven polyester fabric with water repellent properties, preventing blood discharges to the back of the tape.

  • Features of the package
    Each tape is individually sterilized before packaging.
    Easy opening, simple removal.
    Sanitary procedures: no need to touch the pad (which eventually has direct contact with the punctured skin) from the opening of the package to the application of the tape.

  • Features of the adhesive area
    Made from a non-woven urethane fabric which is flexible and extends well in all directions. Its extension recovery rate exceeds 90%, making it perfect for pressure immobilization.
    High adhesive power, secure retention and sticking. (Fig 2)
    By stretching the 39 mm × 80 mm sized tape to a moderate length, the pad can be securely bound from four directions to avoid becoming detached. (Fig 3)

  • Features of the package
    Each tape is individually sterilized before packaging.
    Easy opening, simple removal.
    All procedures are hygienic; there is no need to touch the pad (which eventually has direct contact with the punctured skin) from the opening of the package to the application of the tape. (Fig 4)

  • Backing: urethane non-woven fabric
    Adhesive: acrylic adhesive

  • Target:
    Blood Sampling Room (Blood Centre or ICU), Dialysis Unit Orthopedic Department, Blood Gas Monitoring, A line (Operation Room)

Applications
  • Blood centre: For haemostasis or protective covering of peripheral veins after a blood donation or blood sampling.

  • Hospitals/Clinics: For haemostasis or protective covering of peripheral veins after blood sampling, a blood transfusion or infusion.

Precautions​
  • Do not reuse the product!

  • If wounds become clinically infected while using the product, please stop its use and seek appropriate treatment.

  • If you develop skin lesions (e.g. rashes, flares or itching) while using the product,  please stop its use and seek appropriate treatment.

  • Always take the needle out before attaching the product to avoid damage to the skin or the blood vessels.

  • Please note that prolonged use of the pressurizing tapes will create excessive tension causing stress on the skin.

  • We suggest you remove the product in approx. 2 hours to avoid stress on the skin.

  • Make sure the bleeding has stopped after removing the tapes. If the pressurizing is not enough, please apply appropriate methods such as pressure hemostasis with your hands.

  • Please cover and protect the needled site to prevent infection after removal.

  • If the product gets wet or tainted, please remove it and apply a fresh pad immediately.

  • If the product package is defaced, broken or wet, please avoid using it.

  • The product should be used immediately after the seal is broken.

  • Peel off the pad slowly along the flow of your body hair to prevent skin injuries upon removal.
